This patch makes the basic structure for a wrapper around Dear ImGui's drawing API. 1. Implement `with_window_draw_list` method on Ui. Call this method to get access to the `WindowDrawList` object. This object holds the methods to access ImGui's drawing API. 2. Dear ImGui uses the ImU32 (an unsigned c_int) to represent colors in the drawing API. This commit wraps this type with ImColor for convenience. Any color representation (3or4-tuples, 3or4-arrays, ImU32 or ImVec4) can be converted into ImColor for convenience. 3. Difference between WindowDrawList and ChannelsSplit: Most drawing functions can be called on WindowDrawList and ChannelsSplit objects. However for safety, some functions can only be called on WindowDrawList or ChannelsSplit instance. For example `channels_set_current` can only be called after channels have been split. To avoid code duplication, functions common to WindowDrawList and ChannelsSplit are implemented within the `impl_draw_list_methods` macro. 4. Implement drawing functions (in this commit, add_line only). Calling `add_line` returns a default representation of the line to be drawn, but does not draw it. Then parameters, such as thickness, can be set. You must call `build` to draw the line. All drawing functions will be implemented following this pattern.
imgui-rs: Rust bindings for ImGui
Still fairly experimental!
Minimum Rust version: 1.20

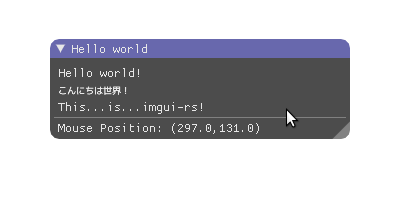

ui.window(im_str!("Hello world"))
.size((300.0, 100.0), ImGuiCond::FirstUseEver)
.build(|| {
ui.text(im_str!("Hello world!"));
ui.text(im_str!("こんにちは世界！"));
ui.text(im_str!("This...is...imgui-rs!"));
ui.separator();
let mouse_pos = ui.imgui().mouse_pos();
ui.text(im_str!("Mouse Position: ({:.1},{:.1})", mouse_pos.0, mouse_pos.1));
})
Currently implemented things
- Low-level API (imgui-sys)
- Renderer for easy integration with Glium projects (optional)
- Parts of high-level API
- Not horrible way of defining and passing null-terminated UTF-8 to ImGui.
The macro
im_str!needs to be used most of the time. For more information and justification for this design, please see issue #7 - Parts of imgui_demo.cpp reimplemented in Rust as an API usage example (examples/test_window_impl.rs)
Important but unimplemented things
- Documentation (rustdoc)
- Support passing a custom Program to Glium renderer (e.g. from a shader cache, or custom shader)
Core design questions and current choices
- Closures VS begin/end pairs (current choice: closures)
- Mutable references VS return values (current choice: mutable references)
- Passing around Ui<'ui> VS passing around &'ui Ui (current choice: Ui<'ui>)
- Splitting the API to smaller pieces VS all draw calls in Ui (current choice: all draw calls in Ui)
- Builder pattern for optional arguments VS something else (current choice: builder)
- Mutation functions in builders VS self-consuming functions in builders (current choice: self-consuming)
Compiling and running the demos
Examples are under the imgui-examples directory.
git clone https://github.com/Gekkio/imgui-rs
cd imgui-rs
git submodule update --init --recursive
cd imgui-examples
cargo test
cargo run --example hello_world
cargo run --example test_window
cargo run --example test_window_impl
Note to Windows users: You will need to use the MSVC ABI version of the Rust compiler along with its associated dependencies to build this libary and run the examples.
How to contribute
-
Change or add something
-
Run rustfmt to guarantee code style conformance
cargo install rustfmt cargo fmt -- --write-mode=overwrite -
Open a pull request in Github
License
Licensed under either of
- Apache License, Version 2.0, (LICENSE-APACHE or http://www.apache.org/licenses/LICENSE-2.0)
- MIT license (LICENSE-MIT or http://opensource.org/licenses/MIT)
at your option.
Contribution
Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you, as defined in the Apache-2.0 license, shall be dual licensed as above, without any additional terms or conditions.
